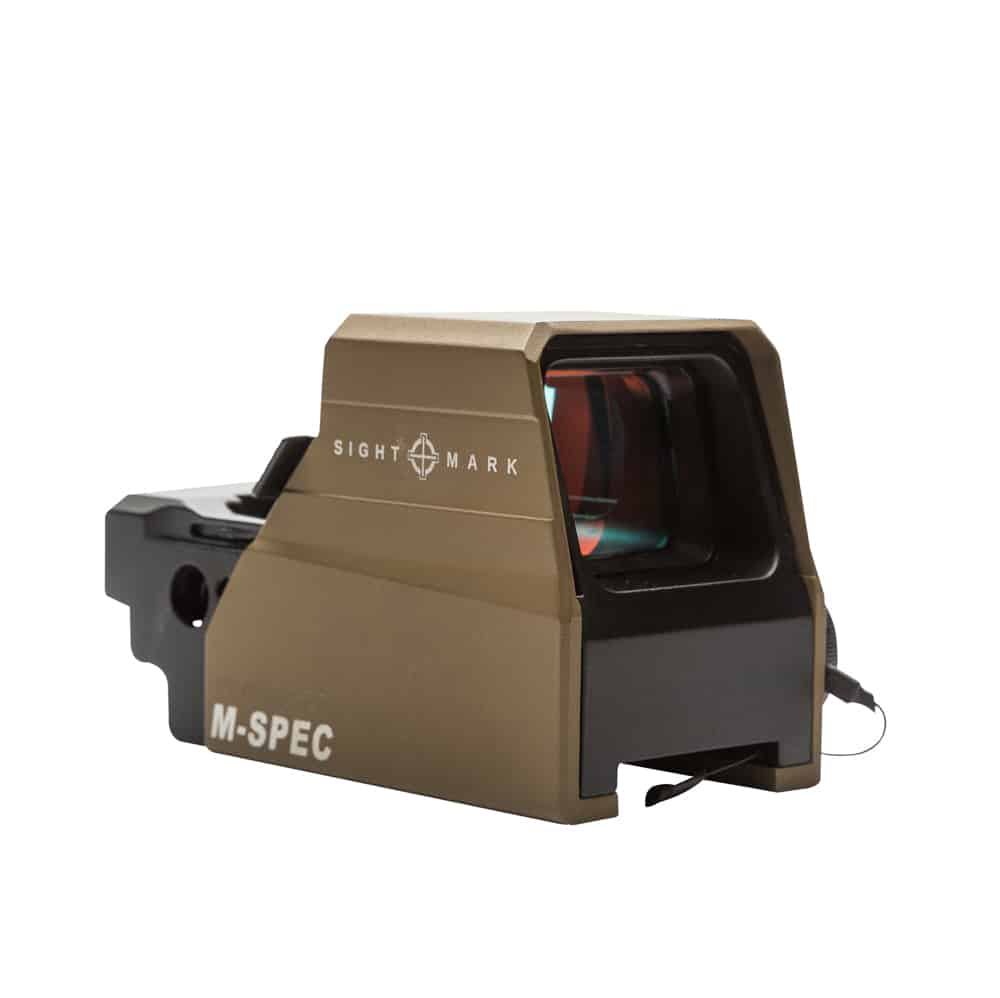

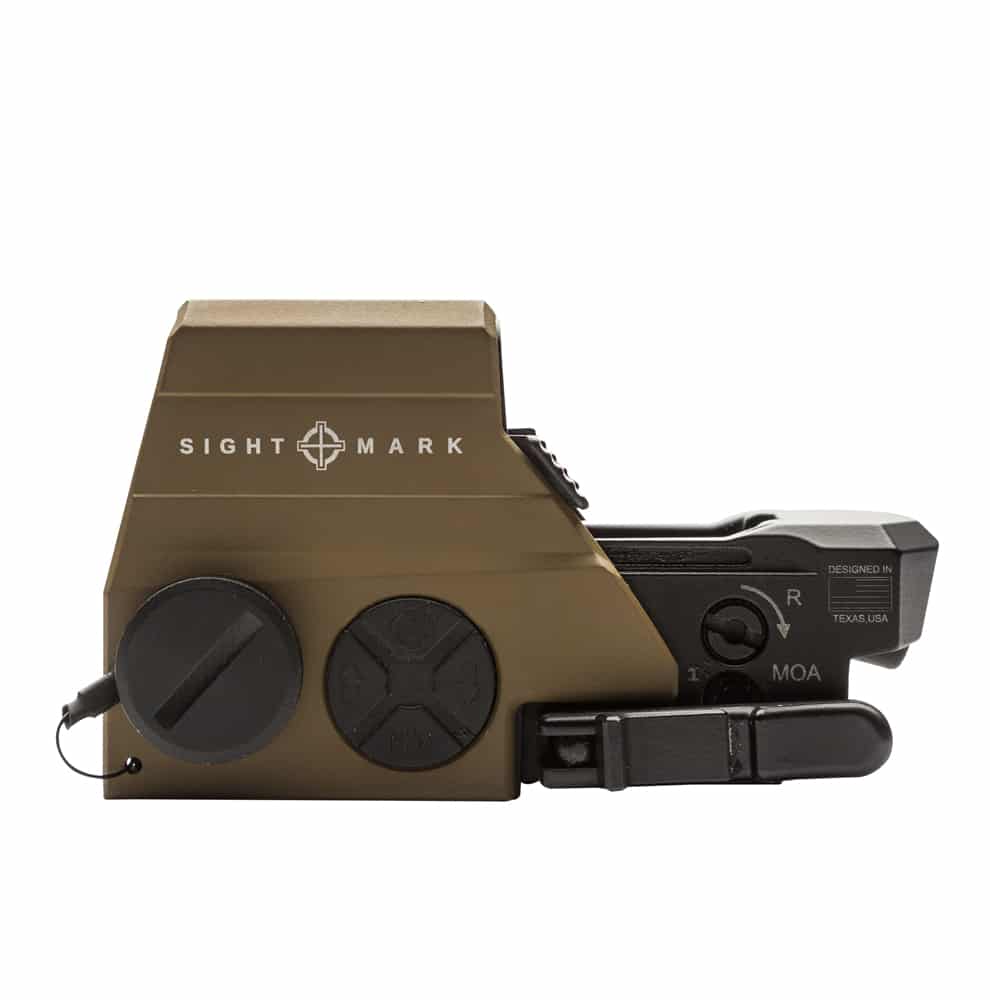

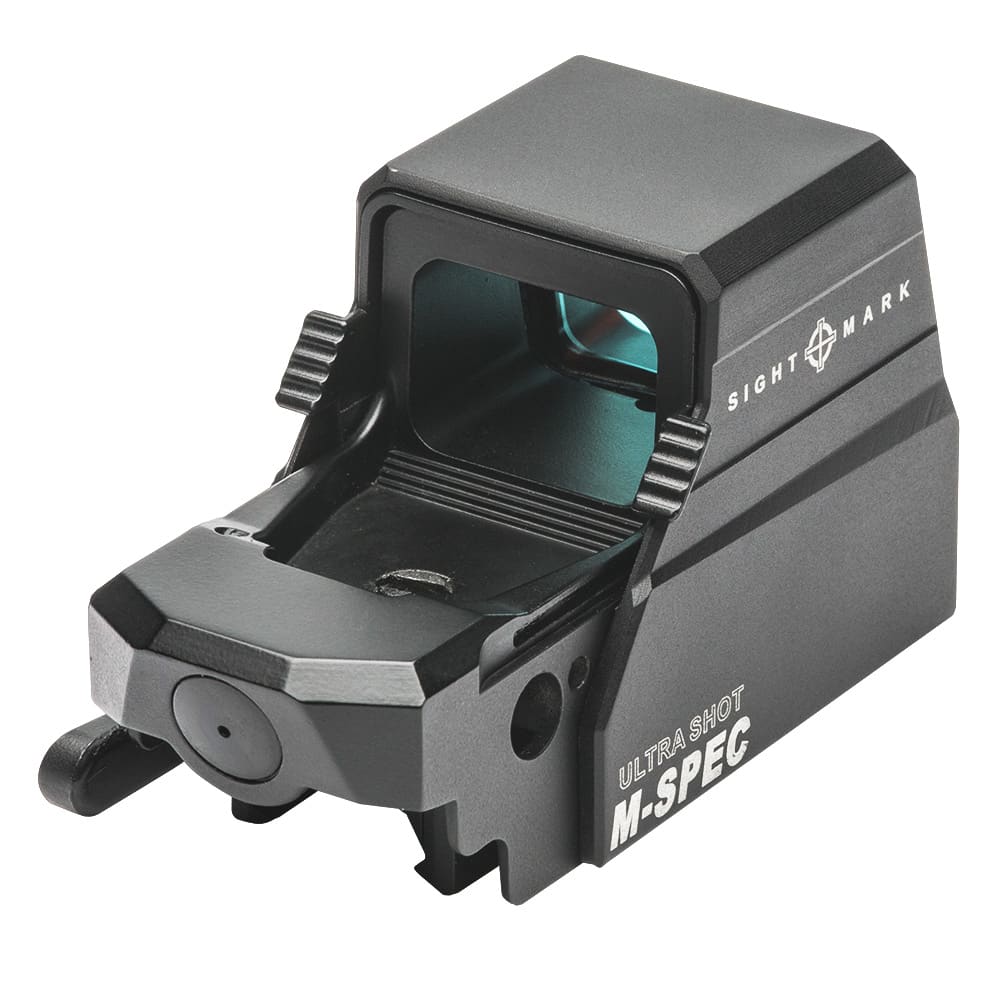

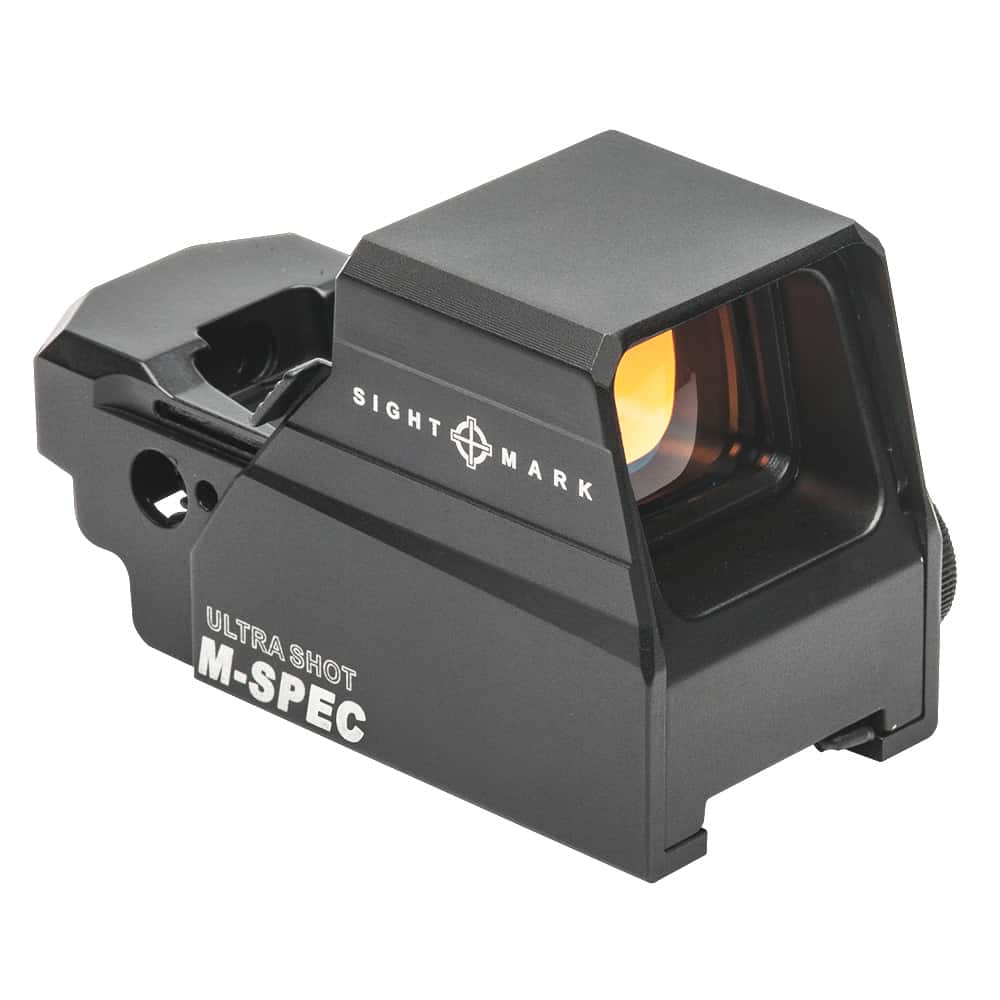

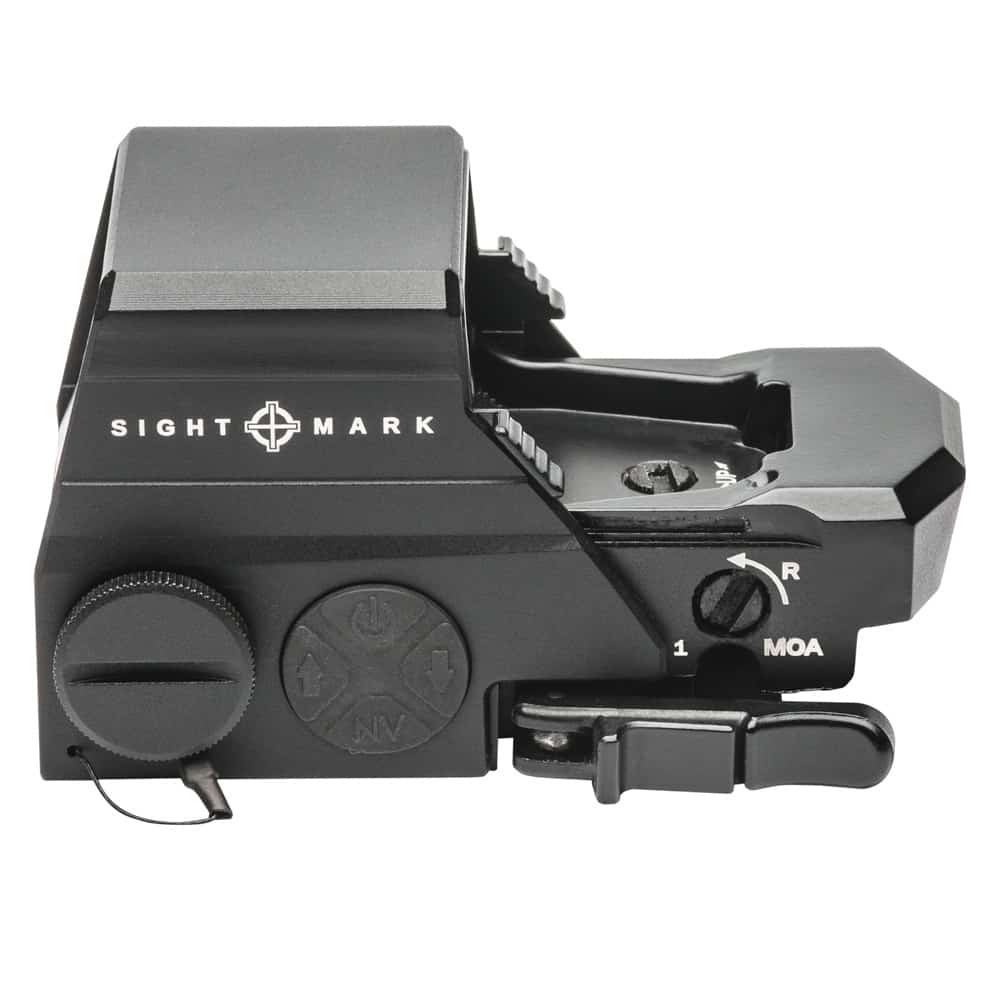

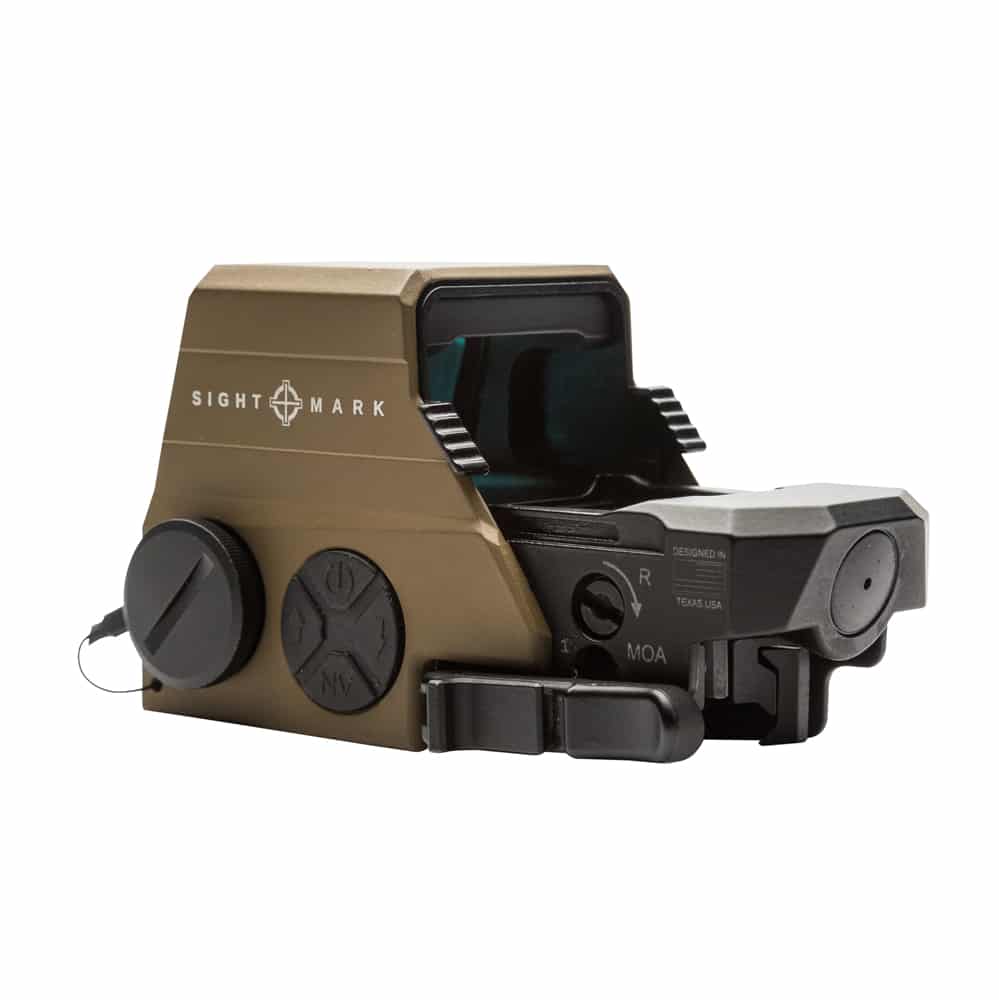

Designed to handle your shooting needs, the Sightmark Ultra Shot M-Spec LQD Reflex Sight brings repeatable precision accuracy, fast target acquisition and rugged mil-spec reliability in virtually any environment.
$ 402.34

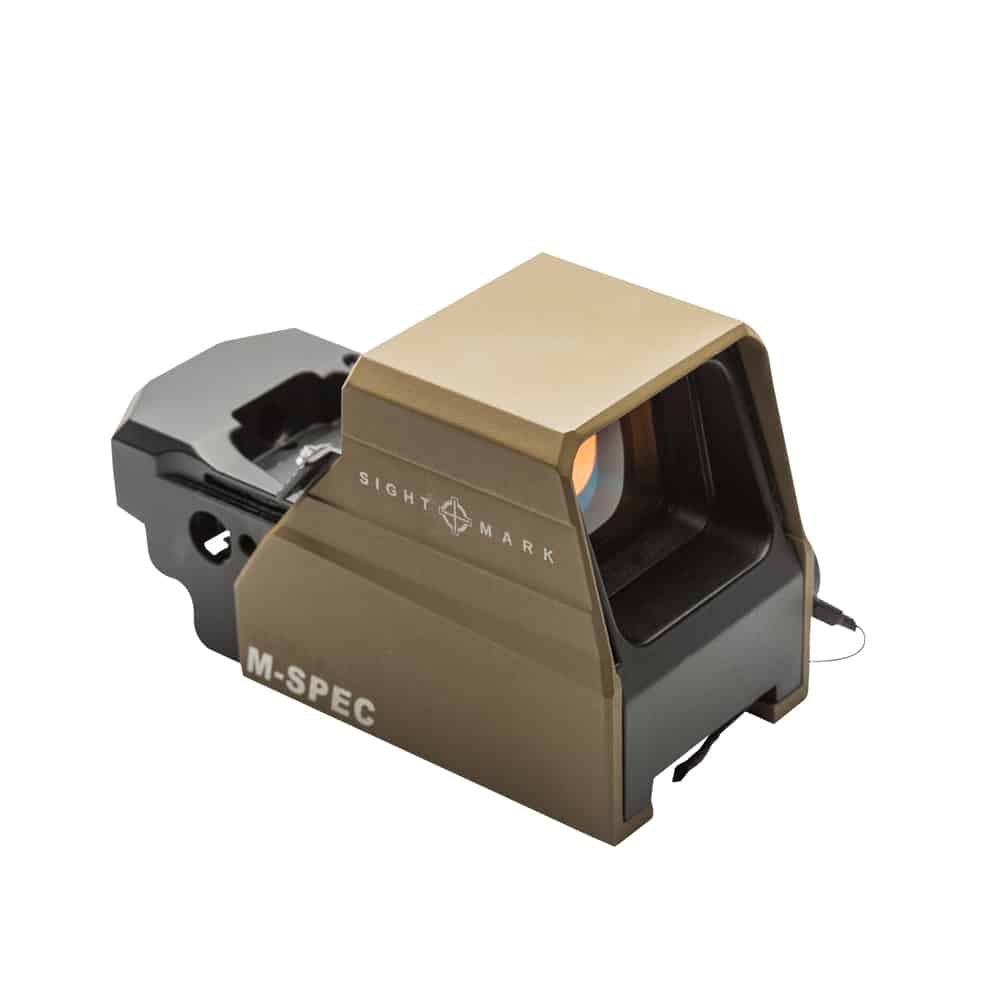

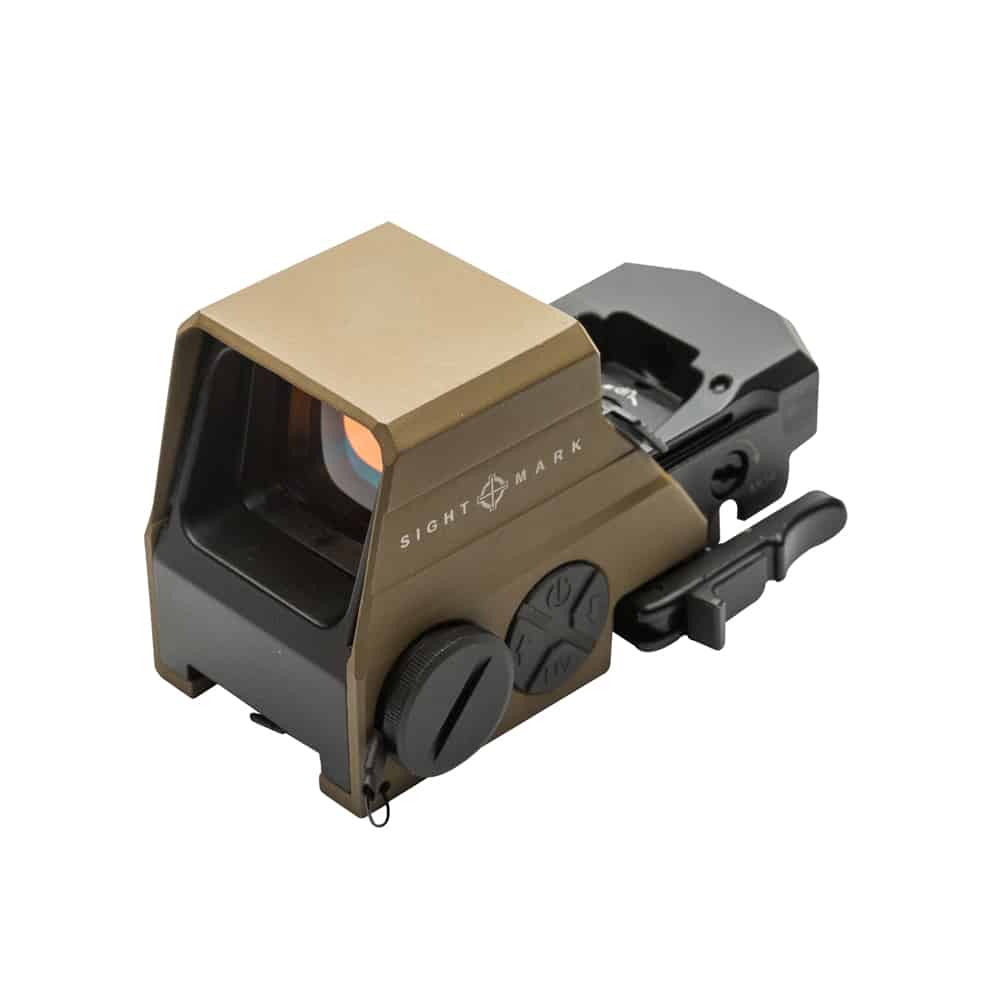

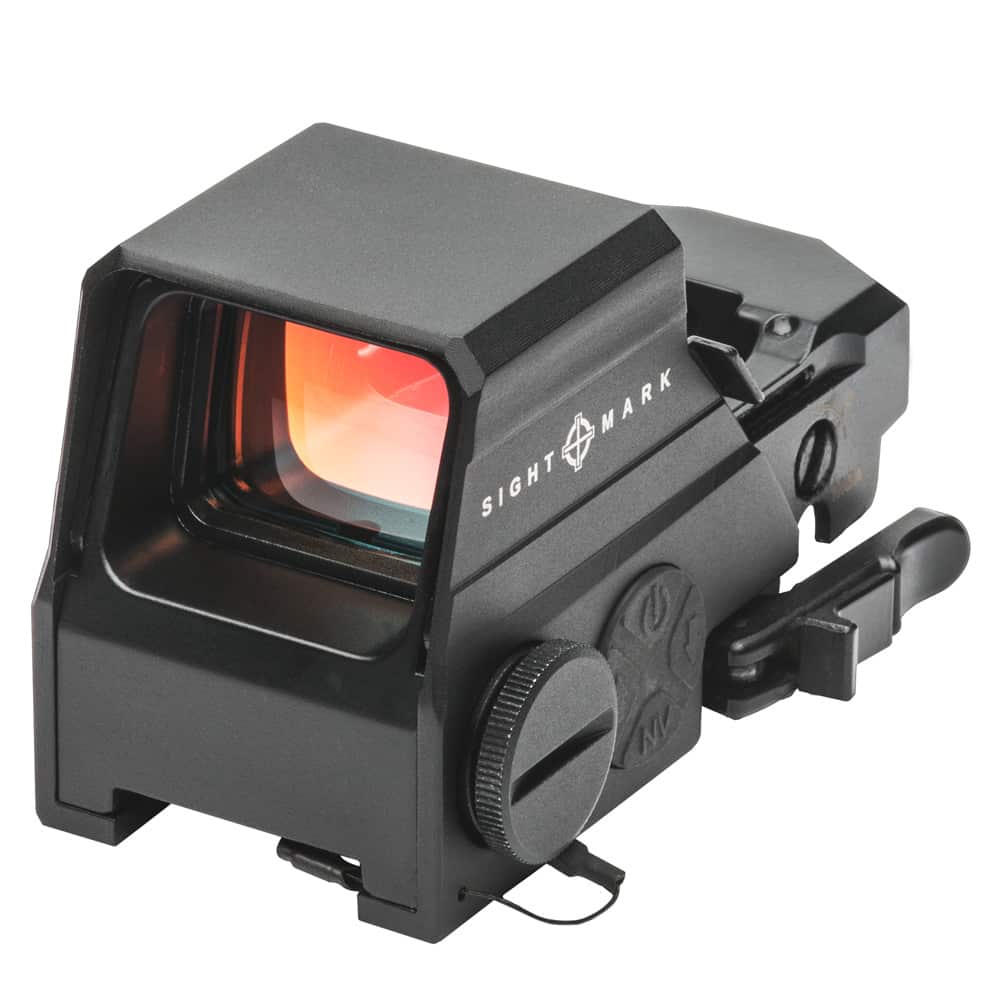

Specially designed to handle your hardcore shooting needs, the Sightmark RAM Series Ultra Shot M-Spec LQD Reflex Sight promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability in virtually any environment. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, patented integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight is shockproof, dustproof, IP68 waterproof, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum protective shield and magnesium alloy body. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot M-Spec Reflex Sight also features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach Picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot M-Spec LQD Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and Neoprene cover.

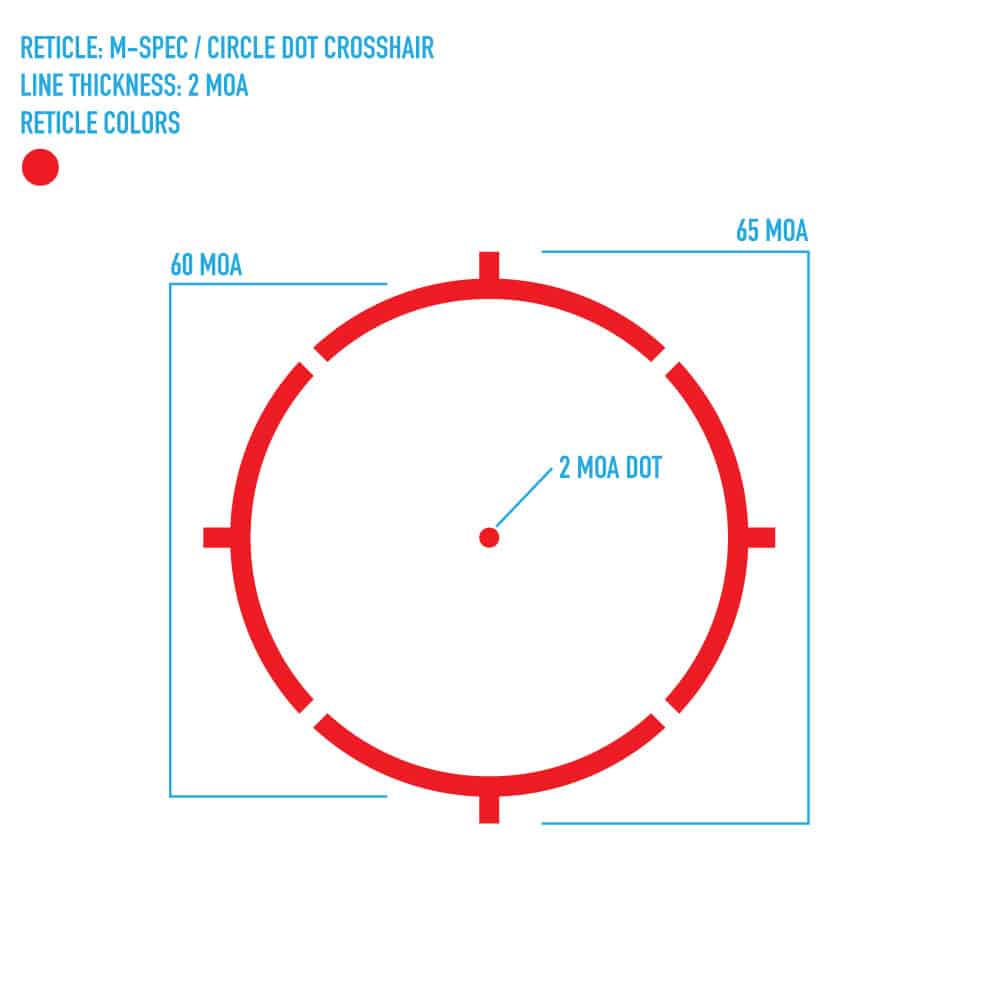

| Reticle, Type | 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot) |
|---|---|
| Reticle, Color | Red |
| Reticle Brightness Setting | Off, 1-10, NV |
| Magnification | 1 x |
| Objective Lens | 33x24 mm |
| Eye Relief | Unlimited |
| Elevation Range of Adjustment | 120 MOA |
| Windage Range of Adjustment | 120 MOA |
| Adjustment Value | 1 MOA One click |
| Parallax Setting | 10 / 9.1 yd / m |
| Finish/Color | Dark Earth/Matte Black |
| Body Material | Magnesium alloy |
| Maximum Recoil | .50 BMG |
| IP Rating (waterproof) | IP68 - waterproof to 40ft / 12m |
| Nitrogen Filled | No |
| Shockproof | Yes, 8ft / 2.4m |
| Fog Proof | No |
| Lens Coating | AR Red |
| Mount Type | Picatinny |
| Battery Type | CR123A |
| Battery life, hours | 200 - 2,000 Hours |
| Battery Voltage, V | 3 V |
| Operating Temperature | -22 to 160 / -30 to 71 F / C |
| Length | 4.01 / 102 in / mm |
| Width | 2.24 / 57 in / mm |
| Height | 2.32 / 59 in / mm |
| Weight, oz | 10.2 |
| Manufacturer | Sightmark |
|---|---|
| Material | Magnesium |
| Color | Black, Dark Earth |
