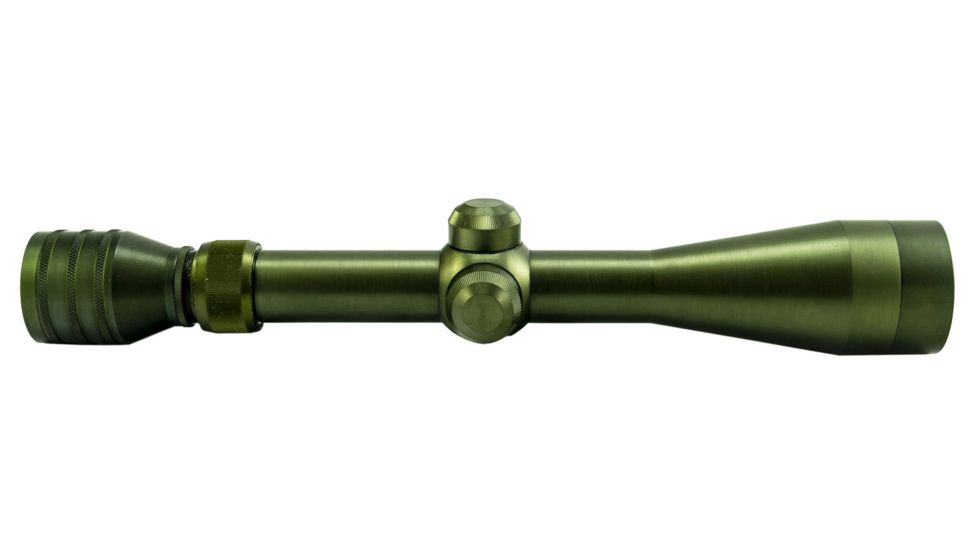

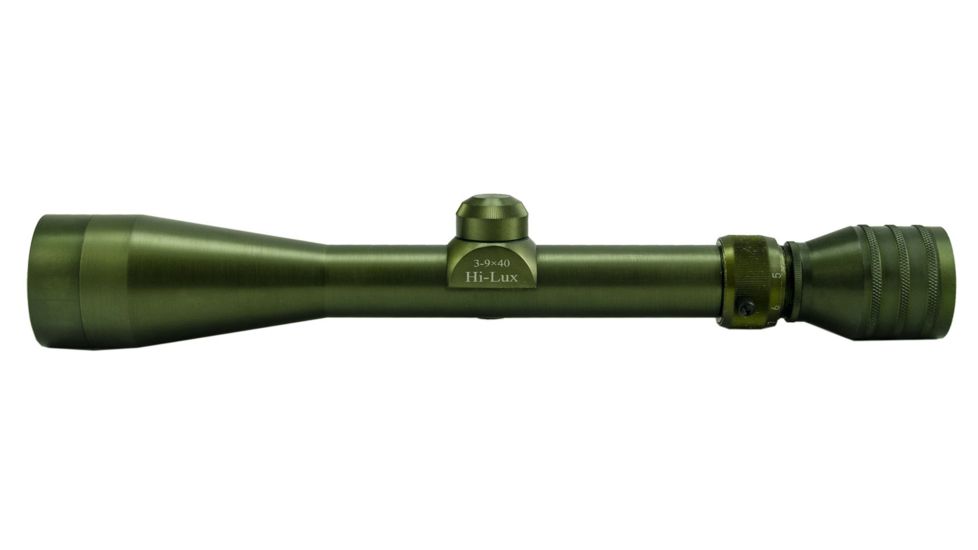

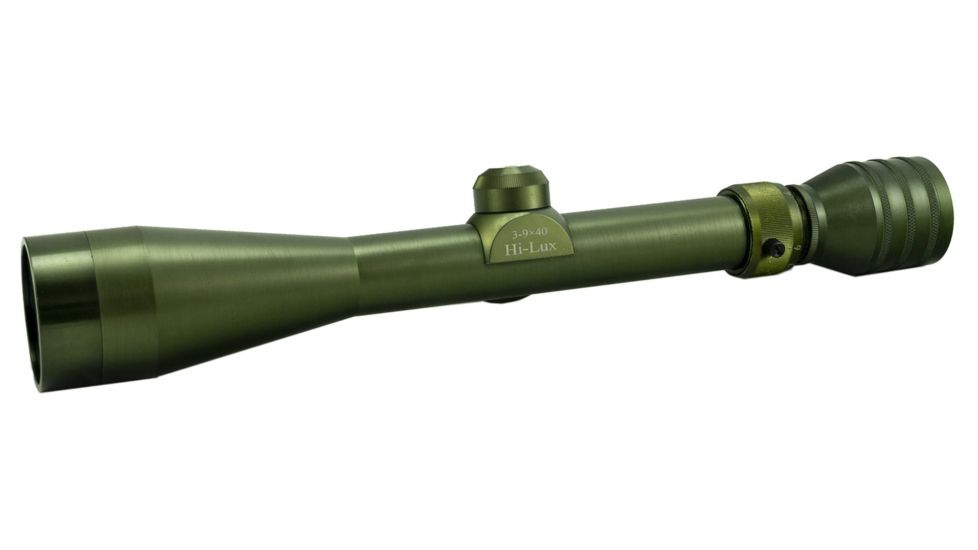

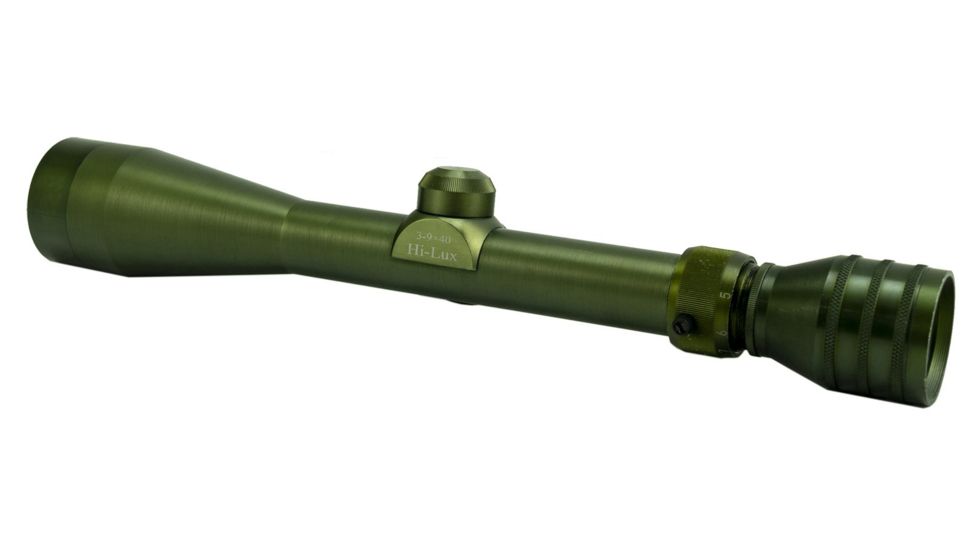

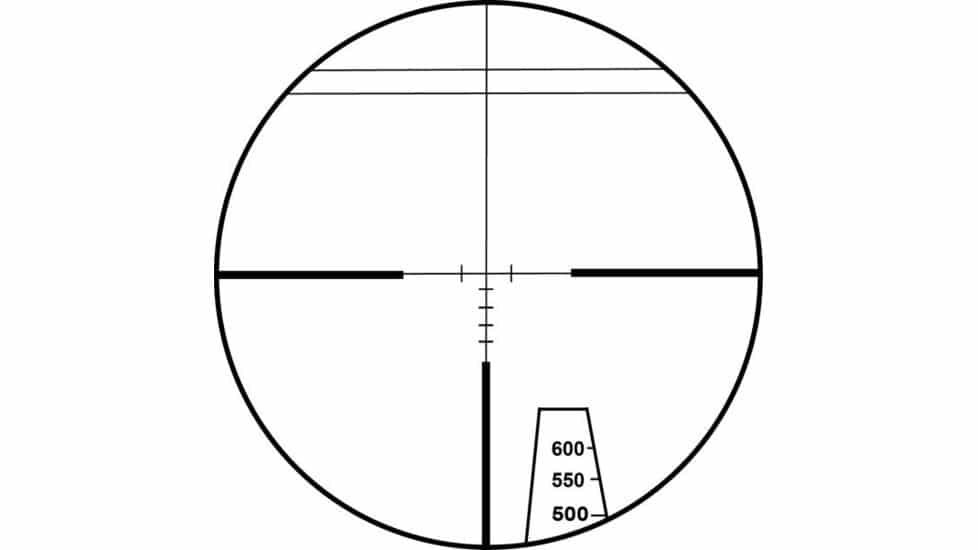

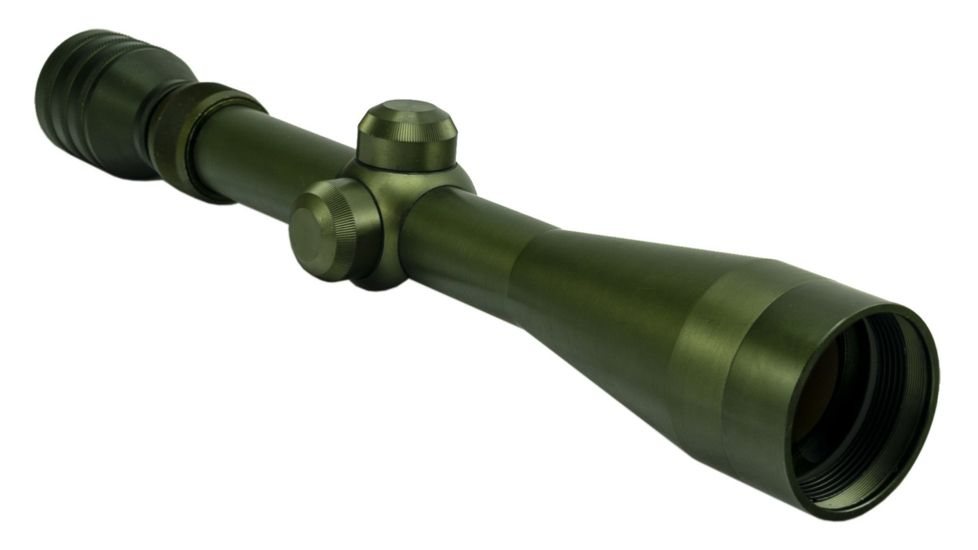

Get the vintage look you've been searching for with modern, up to date features, look no further than the Hi-Lux M40 USMC 3-9x40mm Waterproof Rifle Scope Replica. Reminiscent of Vietnam War era Marine Corp scope design, these Rifle Scopes developed by Hi-Lux Leatherwood incorporate an Auto-Ranging System that can accurately range from 200 to 600 yards with its etched glass yardage ranging scale.
$ 399.00
In 1965, the U.S. Marine Corps began its search for a new rifle and scope combo to serve as their official combat sniper rifle. The goal was to have USMC armorers customize and accurize a readily available production rifle. The Corps settled on the Remington Model 40x, chambered for the .308 Winchester (a.k.a. 7.62 NATO) cartridge, and topped it with a commercially available 3-9x40mm hunting scope with an Accu-Ranging scale. The rifle was designated the M40.
Hi-Lux Optics is now recreating this 1960′s era scope for all of those “old school” sharpshooters among us, those who take the time to know the trajectory of the loads they shoot. However, we’ve made major internal improvements. The optics are far superior to that of the original, with precision ground lenses that are fully multi-coated for maximum light transmission. We’ve also added positive 1/4″ click adjustments to the windage and elevation turrets.
| Objective Lens Diameter: | 40 mm |
| Magnification: | 3 - 9 x |
| Reticle: | Ranging |
| Tube Diameter: | 1 in |
| Reticle Focal Plane: | Second Focal Plane (SFP) |
| Exit Pupil: | 4.4 - 13.3 mm |
| Field of View, Linear: | 12.6 - 37.7 ft at 100 yds |
| Eye Relief: | 3.25 in |
| Diopter Adjustment Range: | -3 - 3 dpt |
| Color: | Green |
| Weight: | 16.2 oz |
| Fabric/Material: | Aluminum |
| Length: | 12.5 in |
| Width: | 1.5 in |
| Height: | 1.25 in |
| Illumination Type: | Non-Illuminated |
| Adjustment Type: | MOA |
| Adjustment Click Value: | 1/4 MOA |
| Adjustment Range: | 60 MOA |
| Parallax: | 100 yds |
| Focus Range: | 100 yds |
| Lens Material: | Glass |
| Optical Coating: | Fully Multi-Coated, Diamond Tuff14 |
| Attachment/Mount Type: | Ring |
| Operating Temperature: | -20 - 60 Celsius |
| Weather Resistance: | Yes |
| Water Resistance Level: | IP64 |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Finish: | Anodized Green |
| Included Accessories: | Microfiber cloth, Flip-up Lens Covers |
| Magnification Type: | Variable |
| Additional Features: | 1in Main Tube, Ranging Reticle |
| W/E Travel at 100 Yds: | 60 MOA |
| Manufacturer | Hi Lux |
|---|---|
| Color | Green |
| Material | Aluminum |
